-- CUTTING TOOLS --

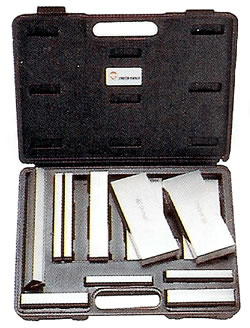

PRECISION PARALLELS SETS


Features:

  1. Parallel accuracy in height is 0.005mm.
  2. Made from high quality alloy steel, hardened and ground.
  3. Hardened HRC 50 - 55 degree's.
W x H x L x PCS (mm)
5 x 16 x 100 x 2PCS
6 x 18 x 100 x 2PCS
8 x 24 x 100 x 2PCS
10 x 30 x 100 x 2PCS
12 x 36 x 150 x 2PCS
12 x 48 x 150 x 2PCS
14 x 48 x 150 x 2PCS
18 x 60 x 150 x 2PCS
22 x 62 x 150 x 2PCS
31 x 15 x 200 x 2.5 x 2PCS

W x H x L x PCS (mm)
8.5 x 14 x 150 x 2PCS
8.5 x 16 x 150 x 2PCS
8.5 x 20 x 150 x 2PCS
8.5 x 24 x 150 x 2PCS
8.5 x 30 x 150 x 2PCS
8.5 x 32 x 150 x 2PCS
8.5 x 36 x 150 x 2PCS
8.5 x 40 x 150 x 2PCS
8.5 x 44 x 150 x 2PCS

W x H x L x PCS (mm)
8.5 x 10 x 150 x 2PCS
8.5 x 15 x 150 x 2PCS
8.5 x 20 x 150 x 2PCS
8.5 x 24 x 150 x 2PCS
8.5 x 30 x 150 x 2PCS
12.6 x 38 x 200 x 2PCS
12.6 x 44 x 200 x 2PCS

W x H x L x PCS (mm)
4.6 x 32 x 150 x 2PCS
4.6 x 34 x 150 x 2PCS
4.6 x 36 x 150 x 2PCS
4.6 x 38 x 150 x 2PCS
4.6 x 40 x 150 x 2PCS
4.6 x 42 x 150 x 2PCS



OPTICAL EDGE FINDER
20mm shank diam
Accuracy within 0.005

KEYTYPE DRILL CHUCK (USEFUL DUTY)
TYPE
LENGTH
(CLOSED)
OUTER
DIA
CLAMPING CAPACITY
10MTPxJT2S
63
38
0-10mm 3/8"
13MTPxJT6
78
45
0-13mm 1/2"
16MTPxJT6
91
55
0-16mm 5/8"
16MTPxJT3
91
55
0-16mm 5/8"




KEYTYPE DRILL CHUCK (HEAVY DUTY)
TYPE
LENGTH
(CLOSED)
OUTER
DIA
CLAMPING CAPACITY
13HTPxJT6
81
52.5
0-13mm 1/2"
19HTPxJT4
120
73.0
0-19mm 3/4"




KEYLESS DRILL CHUCK (HEAVY DUTY)
TYPE
LENGTH
(CLOSED)
OUTER
DIA
CLAMPING CAPACITY
08HxJT2
76
38
0-8mm 5/16"
10HXJT2
92
43
0-10mm 3/8"
13HxJT6
102
49
0-13mm 1/2"
16HxJT6
110
55
3-16mm 5/8"
16HxJT3
110
55
3-16mm 5/8"




KEYLESS DRILL CHUCK (SPECIAL HEAVY DUTY)


TYPE
LENGTH
(CLOSED)
OUTER
DIA
CLAMPING CAPACITY
08SxJT2
76
38
0-8mm 5/16"
10SxJT2
92
43
0-10mm 3/8"
13SxJT6
102
49
0-13mm 1/2"
16SxMT3
125
57
3-16mm 5/8"



SPU DRILL CHUCK (INTEGRATED TYPE)
TYPE
I1
L
I2
D
d1
d2
R
NT30xSPU13-110
110
190.4
55
49
50
5
0.04
NT40xSPU13-90
90
195.4
55
63
50
10
0.04
NT50xSPU13-80
80
218.8
75
97.5
50
13
0.04
BT40xSPU13
100
177.4
75
63
50
13
0.04
BT40xSPU16
105
187.4
80
63
57
16
0.04
BT50xSPU13
100
213.8
75
100
50
13
0.04
BT50xSPU16
105
218.8
80
100
57
16
0.04



ER COLLET SET

L mm
D mm
CONCENTRICITY
ER - UP
COLLET
6
1.0 - 1.4
0.015
0.005
10
1.5 - 2.9
0.015
0.005
16
3.0 - 5.9
0.015
0.005
25
6.0 - 9.9
0.015
0.005
40
10.0 - 17.9
0.020
0.005
50
18.0 - 26.9
0.020
0.005
60
27.0 - 34.0
0.020
0.005

PCS / SET COLLET KIT
ER 8 x 9 5-4.5, 4.5-4, 4-3.5, 3.5-3, 3-2.5, 2.5-2, 2-1.5, 1.5-1, 1-0.5
ER 11 x 13 7-6.5, 6.5-6, 6-5.5, 5.5-5, 5-4.5, 4.5-4, 4-3.5, 3.5-3, 3-2.5, 2.5-2, 2-1.5, 1.5-1, 1-0.5
ER 16 x 10

10-9. 9-8, 8-7, 7-6, 6-5, 5-4, 4-3, 3-2, 2-1, 1-0.5
ER 20 x 12 13-12, 12-11, 11-10, 10-9, 9-8, 8-7, 7-6, 6-5, 5-4, 4-3, 3-2, 2-1
ER 25 x 15 16-15, 15-14, 14-13, 13-12, 12-11, 11-10, 10-9, 9-8, 8-7, 7-6, 6-5, 5-4, 4-3, 3-2, 2-1
ER 32 x 18 20-19, 19-18, 18-17, 17-16, 16-15, 15-14, 14-13, 13-12, 12-11, 11-10, 10-9, 9-8, 8-7,7-6, 6-5, 5-4, 4-3, 3-2
ER 40 x 23 26-25, 25-24, 24-23, 23-22, 22-21, 21-20, 20-19, 19-18, 18-17, 17-16, 16-15, 15-14, 14-13, 13-12, 12-11, 11-10, 10-9, 9-8, 8-7, 7-6, 6-5, 5-4, 4-3
ER 50 x 17 34-32, 32-30, 30-28, 28-26, 26-24, 24-22, 22-20, 20-18, 18-16, 16-14, 14-12, 12-10, 10-9, 9-8, 8-7, 7-6, 6-5




BT40 ER COLLET CHUCK






TYPE
I1
L
d1
d2 ER
d3
T
BT40xER16 - 70
70
135.4
28
16

28
M10 x 1.5P
BT40xER16 - 100
100
165.4

28
BT40xER16 - 125
125
190.4

28
BT40xER16 - 150
150
215.4

28
BT40xER20 - 70
70
135.4
34
20

34
M12 x 1.75P
BT40xER20 - 100
100
165.4

34
BT40xER20 - 135
135
200.4

34
BT40xER20 - 150
150
215.4

34
BT40xER25 - 70
70
135.4
42
25

42
M16 x 2.0P
BT40xER25 - 90
90
155.4

42
BT40xER25 - 125
125
190.4

42
BT40xER25 - 150
150
215.4

42
BT40xER32 - 70
70
135.4
50
32

50
M16 x 2.0P
BT40xER32 - 100
100
165.4

50
BT40xER32 - 150
150
215.4

50
BT40xER40 - 80
80
145.4
63
40

63
M20 x 2.0P
BT40xER40 - 100
100
165.4

63
BT40xER40 - 120
120
185.4

63
BT40xER40 - 150
150
215.4

63
BT40xER50 - 85
85
145.4
78
50

59
M24 x 2.0P
BT40xER50 - 100
100
165.4

59
Price

BT50 ER COLLET CHUCK



TYPE
I1
L
d1
d2 ER
d3
T
BT50xER16 - 70
70
171.8
28
16

28
M10 x 1.5P
BT50xER16 - 90
90
191.8

28
BT50xER16 - 105
105
206.8

28
BT50xER16 - 135
135
236.8
28
BT50xER16 - 150
150
251.8
28
BT50xER16 - 165
165
266.8
28
BT50xER20 - 70
70
171.8
34
20

34
M12 x 1.75P
BT50xER20 - 90
90
191.8

34
BT50xER20 - 105
105

206.8

34
BT50xER20 - 135
135

236.8
34
BT50xER20 - 150
150

251.8
34
BT50xER20 - 165
165
266.8
34
BT50xER20 - 200
200
301.8

34
BT50xER25 - 70
70
171.8
42
25

42
M16 x 2.0P
BT50xER25 - 105
105
206.8

42
BT50xER25 - 135
135
236.8

42
BT50xER25 - 165
165
266.8

42
BT50xER32 - 80
80
181.8
50
32

50
M16 x 2.0P
BT50xER32 - 100
100
201.8

50
BT50xER32 - 120
120
221.8
50
BT50xER32 - 150
150
251.8
50
BT50xER32 - 200
200
301.8
50
BT50xER40 - 80
80
181.8
63
40

63
M20 x 2.0P
BT50xER40 - 100
100
201.8

63
BT50xER40 - 120
120
221.8

63
BT50xER40 - 135
135
236.8

63
BT50xER50 - 90
90
191.8
78
50

78
M24 x 2.0P
BT50xER50 - 120
120
221.8
78
BT50xER50 - 165
165
266.8

78
Price

Also available:

NT30
to
ER11
NT30
to
ER16
NT30
to
ER20
NT30
to
ER25
NT30
to
ER32
NT40
to
ER16
NT40
to
ER20
NT40
to
ER25
NT40
to
